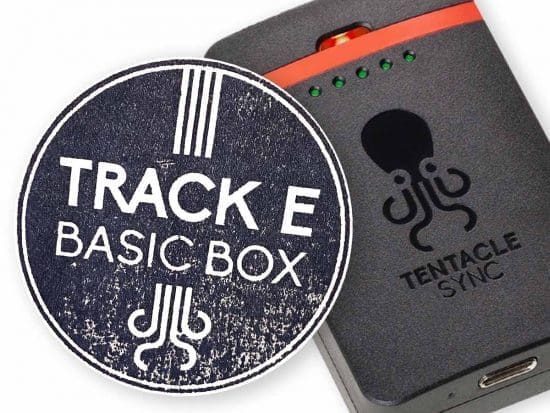

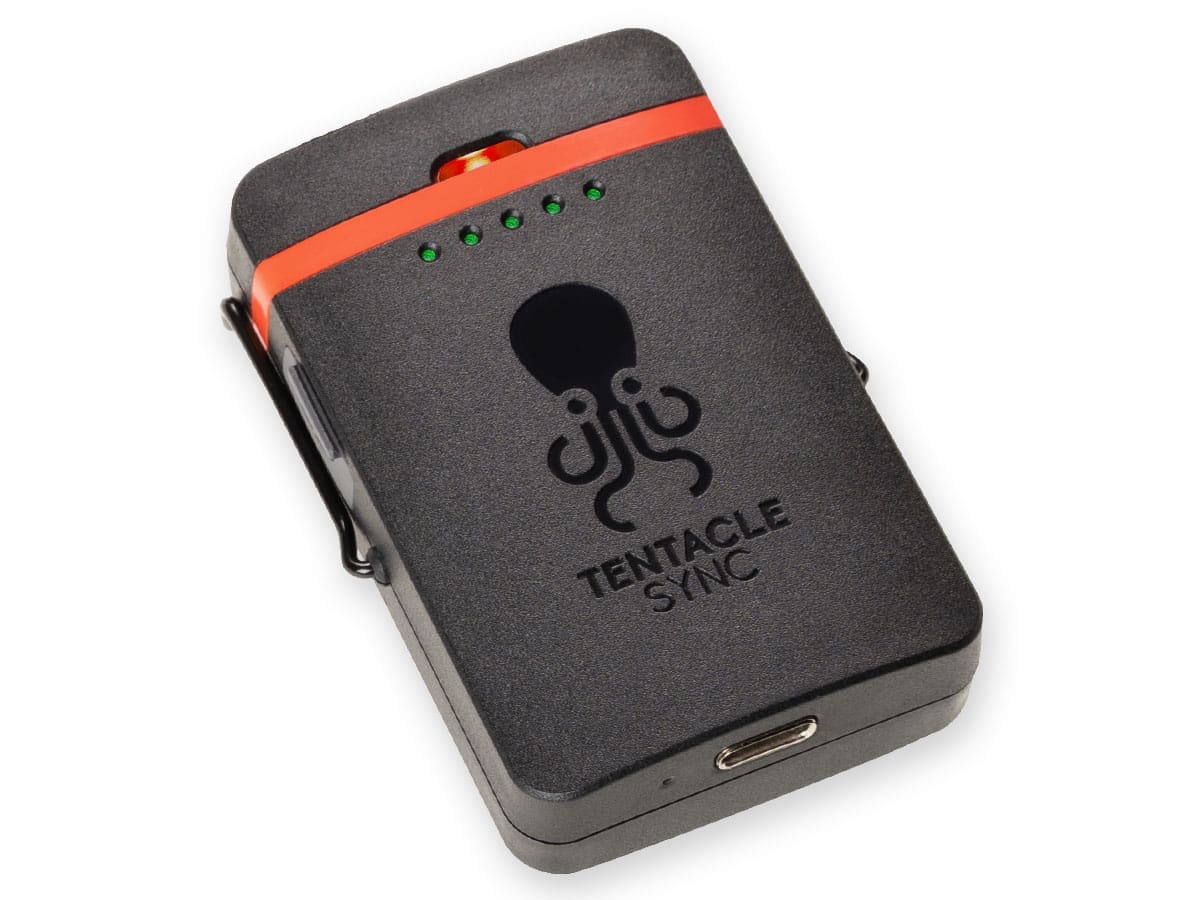

De Tentacle Track E Basic Box Timecode Audio Recorder is bijna net zo klein als de SYNC E. Je kan er een microfoon naar keuze op aansluiten (maximaal 5v plugin power) en via Bluetooth® sync je de Track E gemakkelijk aan de tijdcode.
Met een verwisselbaar microSD kaartje neem je de files op, zowel 24-bit als 32-bit float.
RECORDING
Number of Tracks: 1
Sampling Rate: 48 kHz
Recording Bit-Depth: 32-bit Float / 24-bit
Recording File Formats: WAV (BWF)
Recording Time: 30 hrs (24-bit) / 23 hrs (32-bit Float) with 16 GB Card
Storage Media: microSDHC Card up to 32 GB (Class 10)
Signal Processing: Low Cut Filter, Limiter (24-bit only)

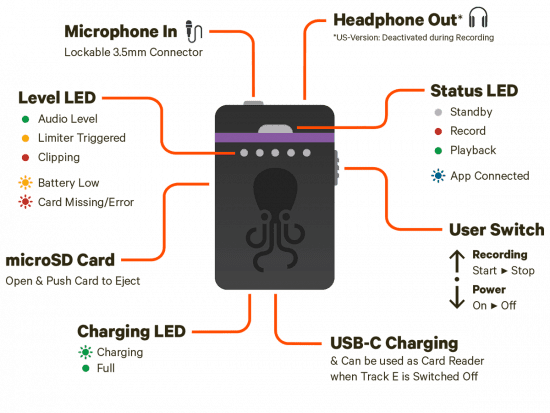

CONNECTIVITY
Microphone Input: 3.5 mm Jack (screw lock)
Mic Plug-In Power: 5 V
Headphone Output*: 3.5 mm Jack
USB Connection: USB-C (USB 2.0)
USB Modes: Charging, Card Reader, Firmware Update
PERFORMANCE
Frequency Response: 20 Hz – 20 kHz
Gain Range: +6 to +46 dB
Dynamic Range: 110 dB typ
THD+N: ≤ -85 dB (0,05 %)
CONTROL & SYNC
Bluetooth®: 5.2 Low Energy
Remote Control: Tentacle Setup App (iOS/Android)
Audio Monitoring: Wireless via Bluetooth® (Tentacle Setup App)
Control: Push Notifications via Bluetooth®
Synchronization: Via Bluetooth® (Tentacle Setup App)
Jam-Sync via Cable
Timecode Input: LTC via Microphone In
Timecode Output: LTC via Headphone Out* (optional)
Frame Rates: SMPTE 12 M / 23.98, 24, 25, 29.97, 29.97 DF, 30
POWER
Power Source: Built-in rechargeable Lithium Polymer Battery
Battery Capacity: 900 mAh
Battery Operation Time: min. 10 hours
Battery Charging Time: max. 2 hours
HARDWARE

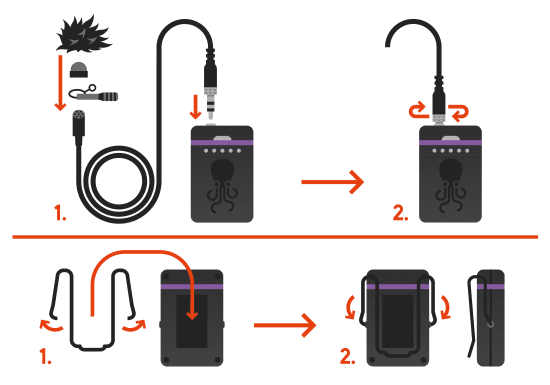

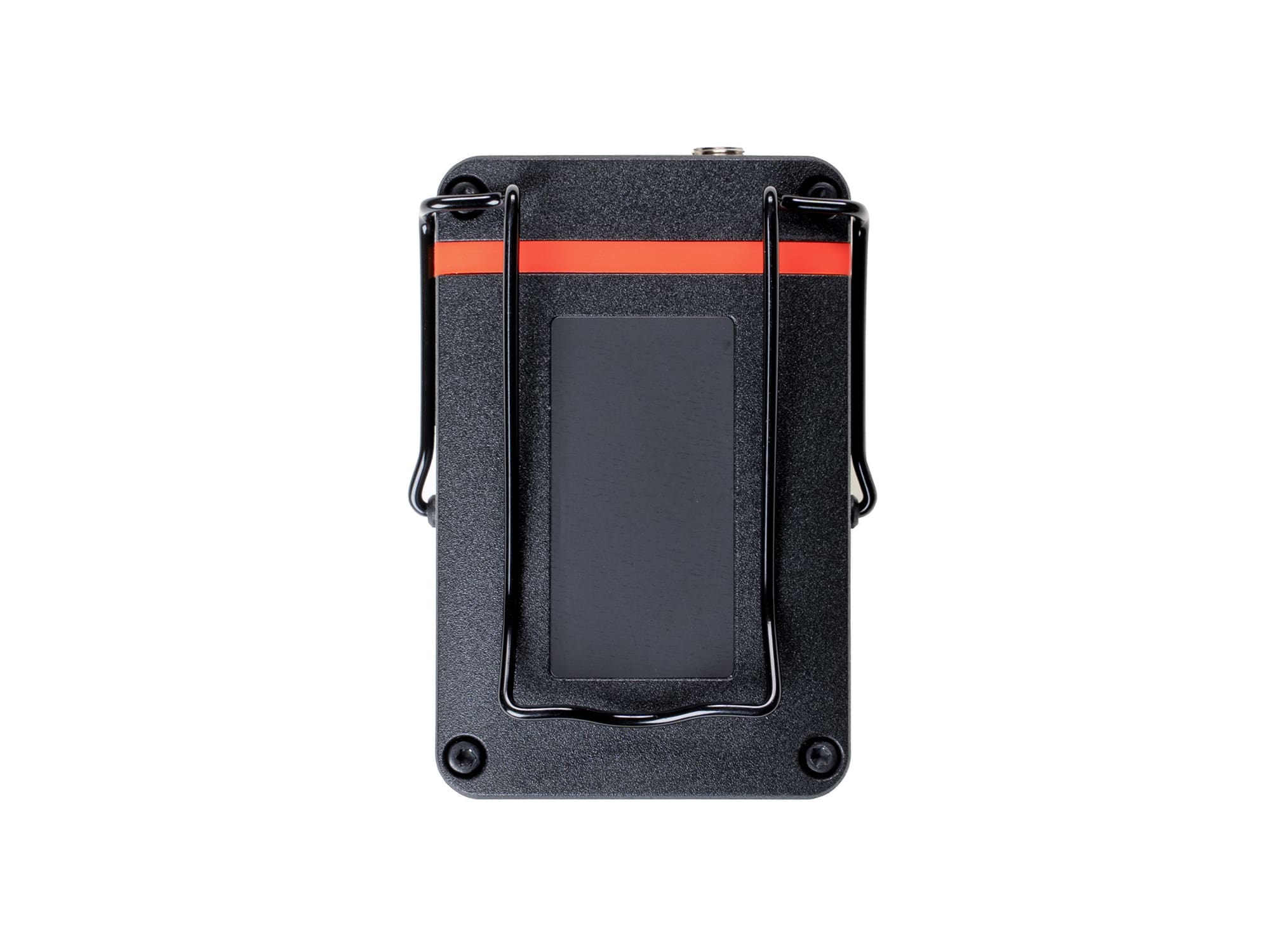

Mounting: Belt Clip (removable)
Weight: 58 g / 2.1 oz
Dimensions: 47 x 68 x 19 mm / 1.85 x 2.67 x 0.74 inches
