Tascam FR-AV2

€329,00 (€398,09 incl. btw)

Beschrijving

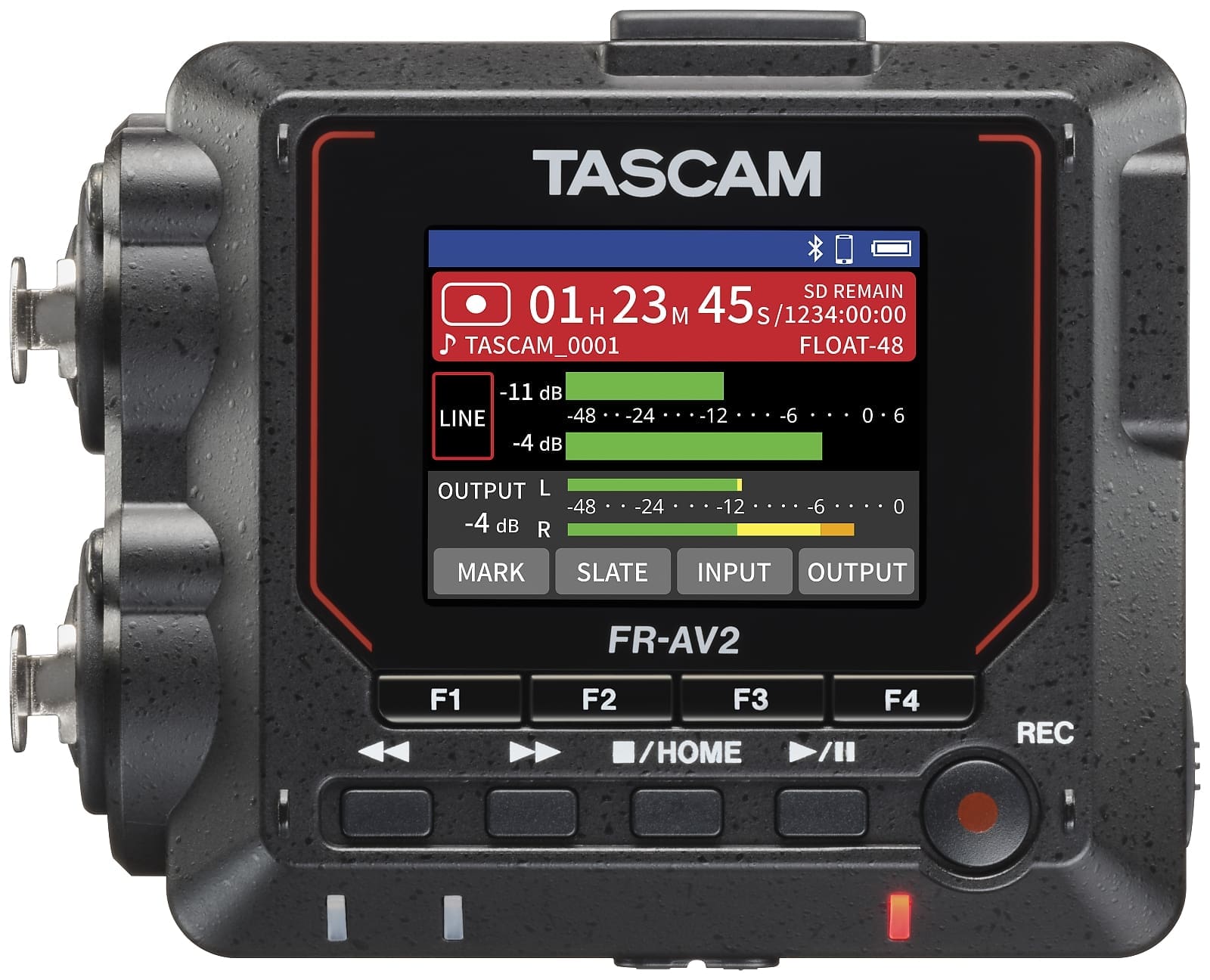

De FR-AV2 Recorder van Tascam is een compacte 2ch, 32bit float recorder met Tijdcode.

Kenmerken van de Tascam FR-AV2:

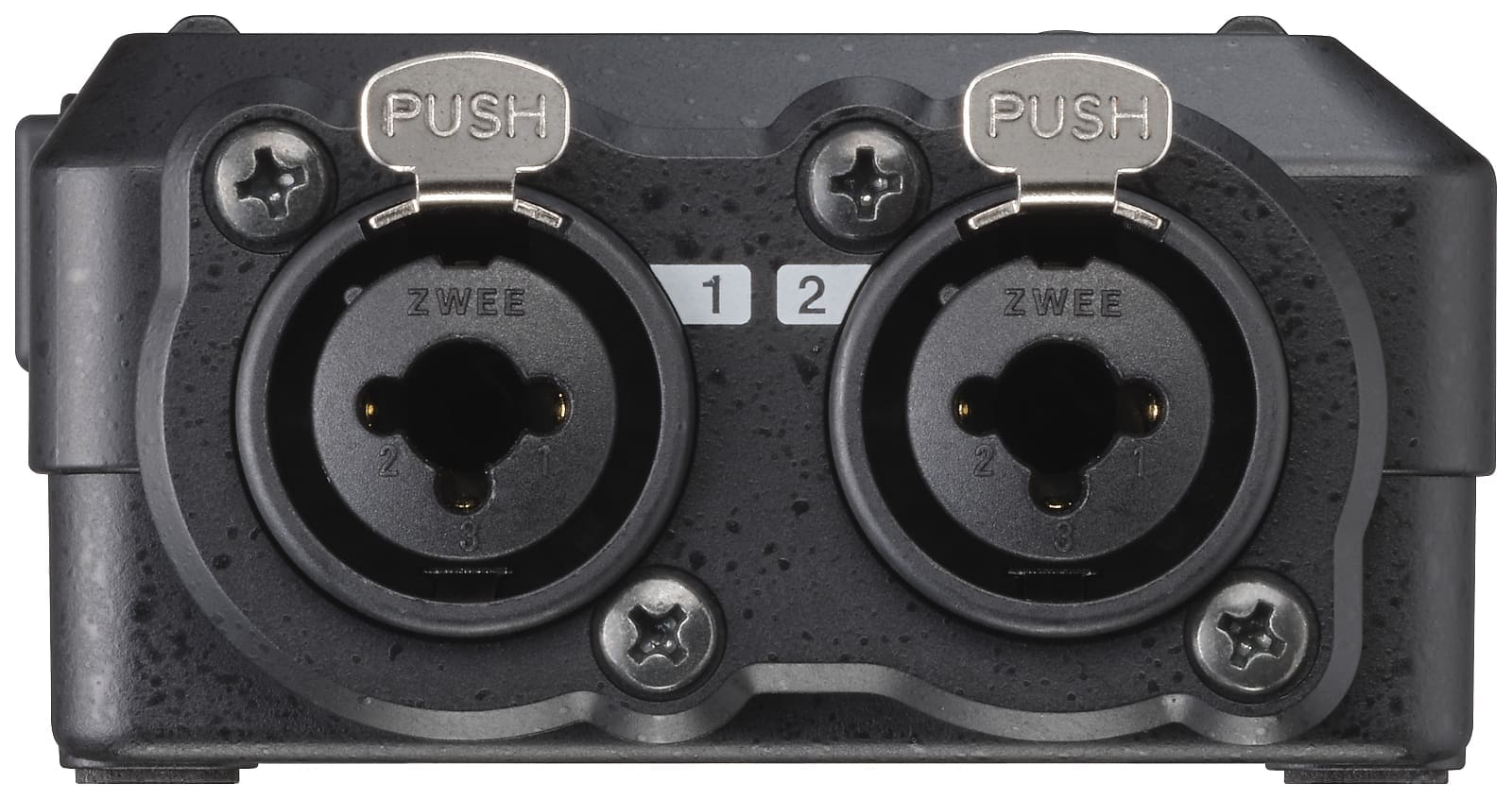

  • 2x XLR / 6.5 Combo jack inputs;
  • Maximale samplerate & bitdepth: 192kHz & 32 bit float;
  • Phantoomvoeding: 24V, 48V;
  • Tijdcode generator;
  • Draadloze tijdcode via optionele Tascam AK-BT1 of AK-BT2



Specificaties van de Tascam FR-AV2:

RECORDER SPECIFICATIONS:

  • recording media: microSD (64 MB 2 GB) / microSDHC (4-32 GB) / microSDXC (48-512 GB)
  • recording/playback format: WAV (BWF)
  • sampling frequency: 48 kHz, 96 kHz, 192 kHz
  • quantization bit depth: 24 bit, 32 bit float
  • Input channels: 2
  • maximum number of recordable tracks: 2

ANALOGUE AUDIO INPUTS AND OUTPUTS:

  • microphone input (balanced): XLR-3-31 (1: GND, 2: HOT, 3: COLD) maximum input level: +4 dBu
  • minimum input level: -76 dBu
  • gain adjustment range: 0-50 dB
  • input impedance: =2 kO
  • phantom power: 24 V, 48 V
  • line input (balanced): 6.3-mm standard TRS jacks (Tip = HOT, Ring = COLD, Sleeve = GND)
  • maximum input level: +24 dBu
  • nominal input level: +4 dBu (GAIN at minimum)
  • input impedance: =8 kO

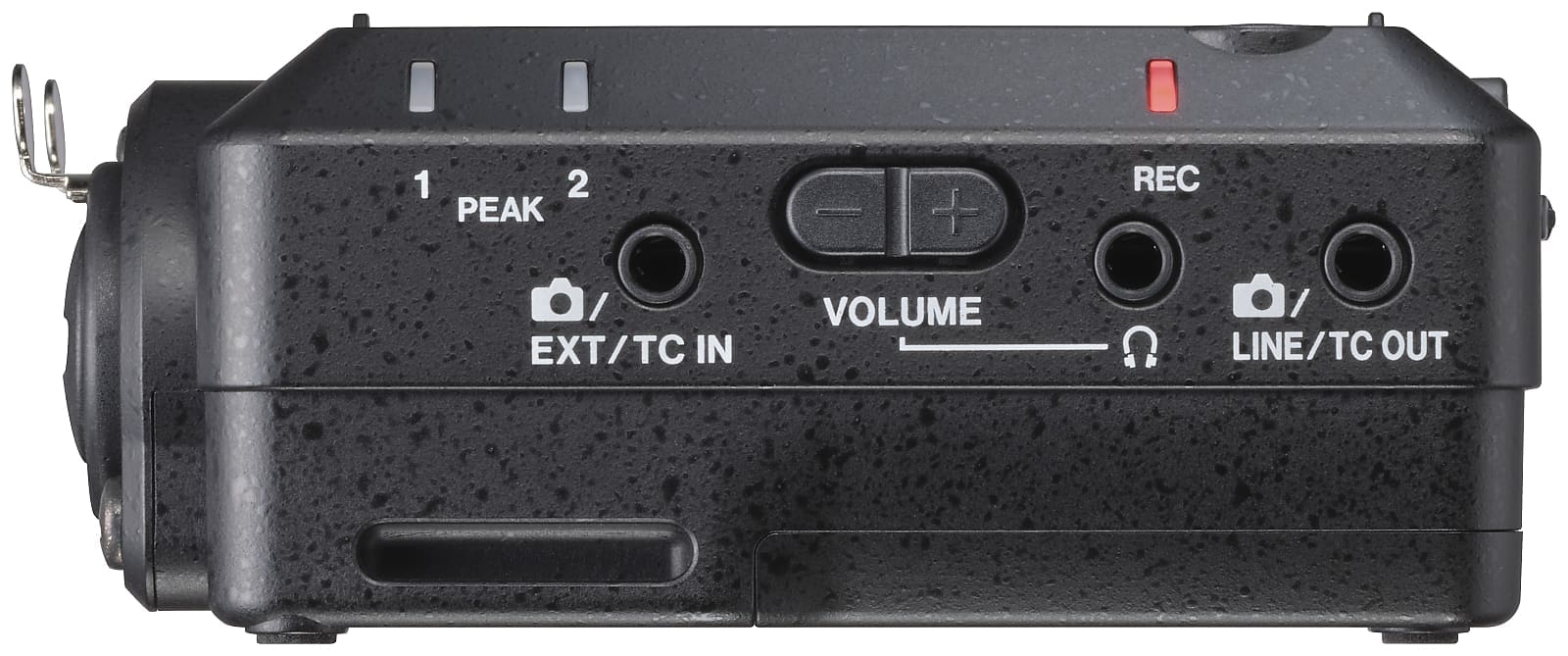

  • line/timecode input (unbalanced): 3.5-mm stereo mini jack
  • maximum input level: 1 dBV
  • nominal input level: -19 dBV (GAIN at minimum)
  • minimum input level: -79 dBV
  • input Impedance: =6 kO (plug-in power off) / =1.6 kO (plug-in power on)
  • plug-in power: 2.5 V, 5 V



ANALOGUE AUDIO OUTPUTS:

  • line/timecode output (unbalanced): 3.5-mm stereo mini jack
  • maximum output level: +6 dBV
  • nominal output level: -10 dBV (-16 dBFS)
  • output impedance: 210 O
  • headphones output: 3.5-mm stereo mini jack
  • maximum output power: 50 mW + 50 mW (THD+N <0.1 % at 32 O)
  • recommended headphones impedance: 16-400 O



USB:

  • connector: USB Type-C
  • transfer format: USB 2.0 HIGH SPEED
  • device Class: Mass Storage Class / USB Audio Class 2.0

USB Audio:

  • sampling frequency: 48 kHz, 96 kHz
  • quantization bit depth: 24 bit, 32 bit float
  • number of inputs/outputs: 2/2 channels



TIMECODE INPUT/OUTPUT:

  • timecode input: 3.5-mm stereo mini jack: (Tip: Timecode IN, Ring: Not used, Sleeve: GND)
  • input impedance: =10 kO
  • signal level range: 0.5 to 5 Vpp
  • timecode output: 3.5-mm stereo mini jack

LTC selected:

  • terminal assignment: Tip: Timecode, Ring: Not used, Sleeve: GND
  • output impedance: 600 O
  • output level: 2 Vpp

MIC LEVEL selected:

  • terminal assignment: Tip: Timecode, Ring: right channel, Sleeve: GND
  • output impedance: 110 O
  • output level: 40 mVpp



AUDIO PERFORMANCE:

  • EIN (equivalent input noise, mic preamp): =-127 dBu frequency response (input jacks to PCM data): 48 kHz: 20 Hz 20 kHz, +0 dB / -0.5 dB / 96 kHz: 20 Hz 40 kHz, +0.5 dB / -1 dB / 192 kHz: 20 Hz 60 kHz, +0.5 dB / -3 dB
  • dynamic range (input jacks to PCM data): =132 dB / (20-kHz SPCL LPF, A-weighting)
  • total harmonic distortion ratio (THD+N, input jacks to PCM data): =0.02 % / (1 kHz sine wave, -1 dBFS input, GAIN at minimum, 20-kHz SPCL LPF)



  • BATTERY OPERATION TIME:
  • conditions: Stereo recording at 48 kHz, both input jacks used, continuous operation, in hours:minutes (JEITA CP-2905) Alkaline battery (Evolta):
  • 09:00: Phantom power off, 24-bit resolution
  • 04:30: Phantom power on (48 V, 2 x 3 mA), 32-bit float

NiMH battery (Eneloop):

  • 08:30: Phantom power off, 24-bit resolution
  • 05:30: Phantom power on (48 V, 2 x 3 mA), 32-bit float

Lithium battery (Energizer Ultimate Lithium):

  • 15:00: Phantom power off, 24-bit resolution
  • 10:00: Phantom power on (48 V, 2 x 3 mA), 32-bit float

Note: Operation times may vary depending on the microphones being used.



POWER SUPPLY AND OTHER SPECIFICATIONS:

  • power sources: 3 AA batteries (alkaline, NiMH, lithium-ion) / USB bus power / TASCAM PS-P520U AC adapter (sold separately)
  • power consumption: 3.8 W (maximum)
  • dimensions (W x H x D, overall): 99 mm x 80 mm x 40 mm
  • weight: 267 g (including batteries) / 195 g (without batteries) Operating temperature range: 0-40 °C
  • Included items: Safety guide, Tascam ID registration guide
