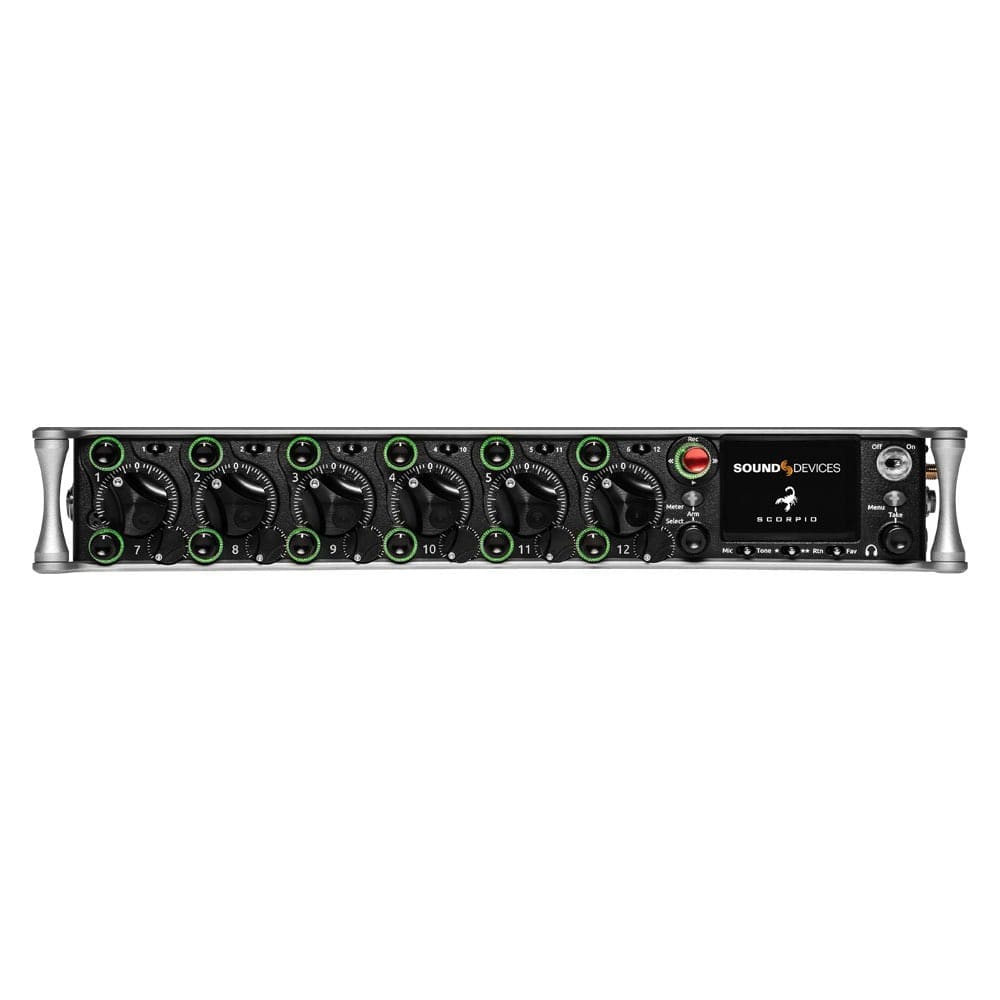

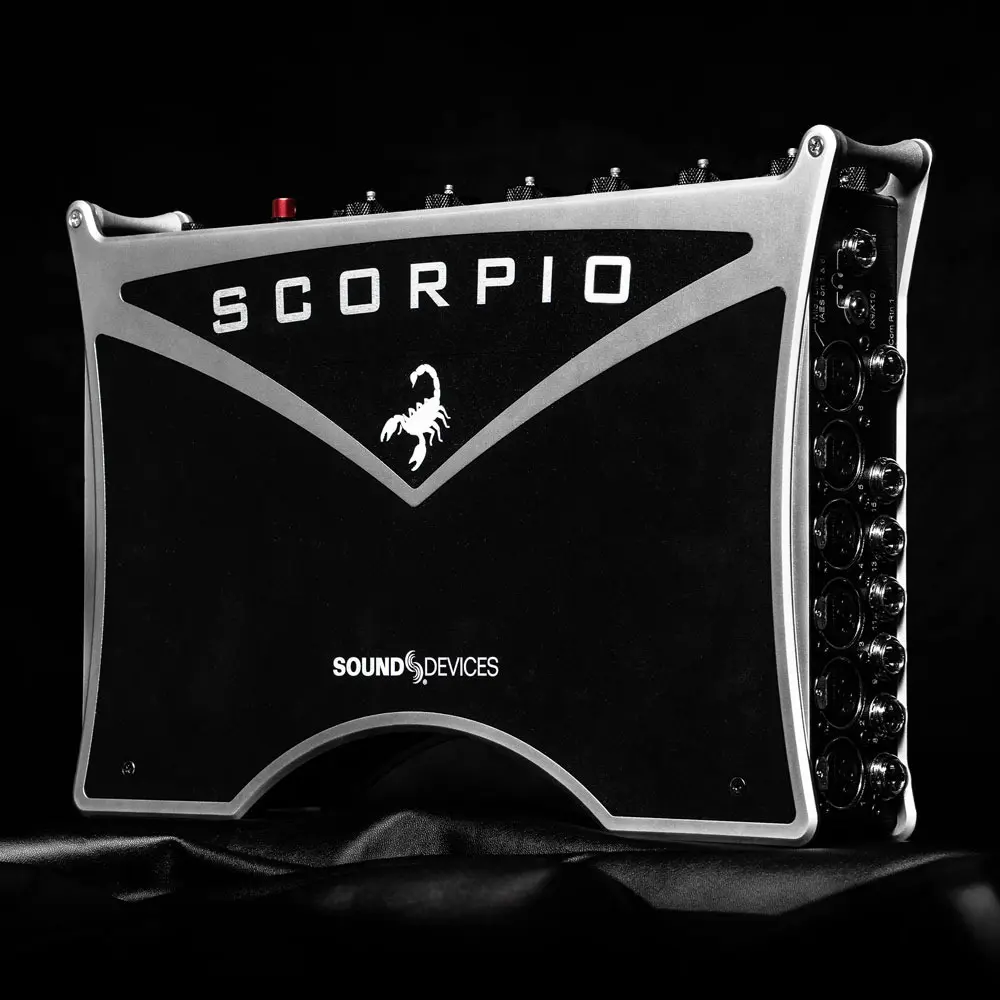

Sound Devices Scorpio

Beschrijving

De Sound Devices SCORPIO is een mixer / recorder met 16 mic/line preamplifiers, 32 kanalen Dante in en uit, 36 track’s, AES in en uitgang, 12 analoge outputs.
Elke analoge input heeft analoge limiters, high pass filters, delay, 3-band EQ en phantom power.
De recorder neemt op op de 256gb SSD en 2x SD kaart.

Specificaties van de Sound Devices SCORPIO

• Freq. Response
  10 Hz to 80 kHz ± 0.5 dB (192 kHz sample rate, re 1 kHz)
• THD + Noise
  0.005% max (1 kHz, 22 Hz–22 kHz BW, trim @20, fader @ 0, -10 dBu in)
• Equivalent Input Noise
  -131 dBV (-129 dBu) max – (A-weighting, 76 dB gain, 150 ohm source impedance)
• Processing Engine
  Highly extensible, full FPGA-based audio processing, 3 FPGAs • Six-way ARM multiprocessor system • 64-bit audio processing precision
• Audio Over Ethernet
  Dante, 32 channels in, 32 channels out • AES67 compatible • 1 Gb/s Ethernet, 2 ports, transformer-balanced
• Inputs

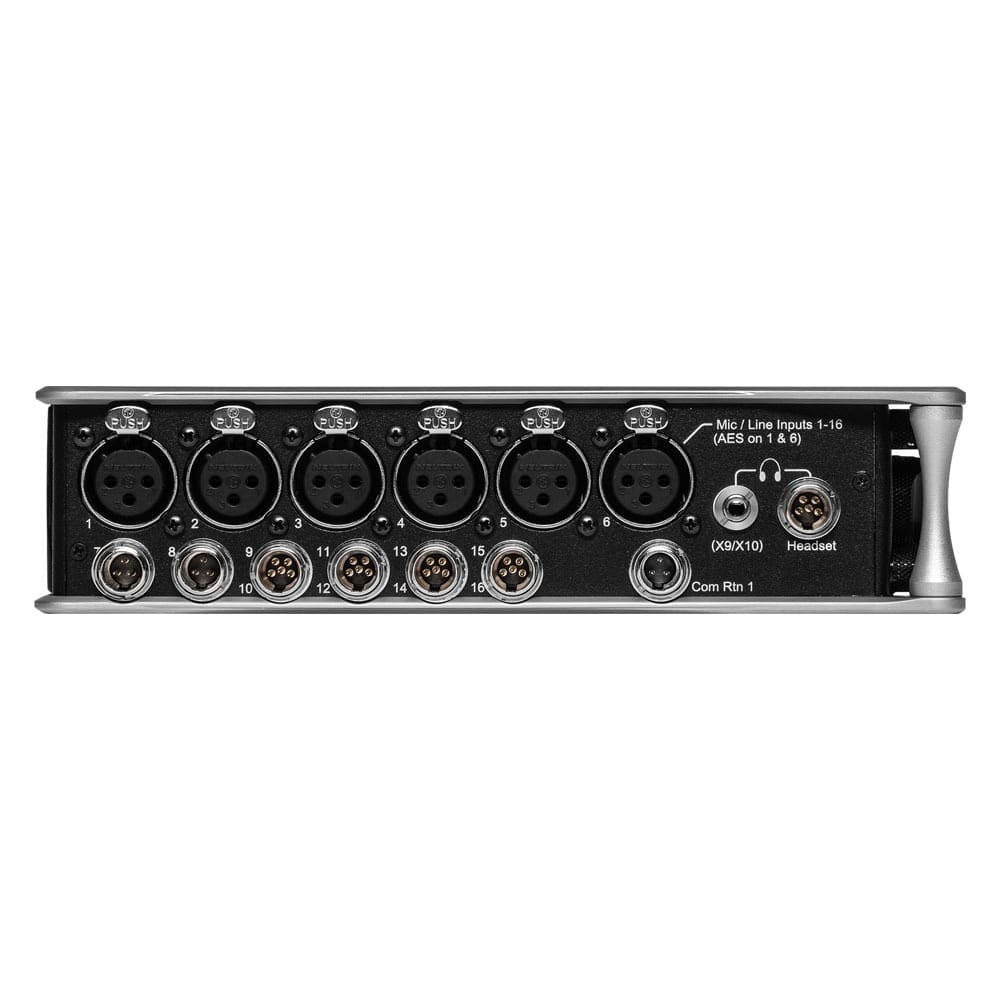

  Mic/Line inputs: 16 total, all fully featured, 6 on full-size XLR, 2 on TA3, 8 on TA5 • Mic-level inputs: (XLR, TA3, TA5): Class-A, discrete differential long-tail pair, 4k ohm input impedance • Line-level inputs: (XLR, TA3, TA5): active-balanced, 4k ohm input impedance • AES3 or AES42 available on XLR inputs 1 and 6 • AES42: +10 V, 250 mA available, type-1, auto-ASRC • Rtn A, B, C (3.5 mm/10-pin): unbalanced 2-channel, 4k ohm input impedance • Com Rtn 1,2 (TA3, 3.5mm) balanced, 1-channel, 8k ohm input impedance • External Slate Mic (TA5): balanced, 8k ohm input impedance, menu-selectable 12 V phantom
• Maximum Input Level
  Mic: +8 dBu (2.0 Vrms) • Line: +28 dBu (19.5 Vrms) • Rtn A, B, C: +18 dBu (6.2 Vrms) • Com Rtn 1, 2: +24 dBu (12.3 Vrms) • External Slate Mic: +12 dBu (3.2 Vrms)
• High-Pass Filters
  • Adjustable 40 Hz to 320 Hz, 18 dB/oct. 1st stage analog
  (before preamp), 2nd stage digital
• Limiters
  Limiters available at all channels, buses, headphones, for all sample rates • Analog first stage, all subsequent stages digital • Attack time: 1 ms • Release time: adjustable, 50 ms to 1000 ms • Threshold: adjustable, -2 dBFS to -12 dBFS • Selectable knee: hard or soft • Selectable ratio: inf:1, 20:1 Delay • Channel Adjustable 0-50 ms • Output Adjustable 0-500 ms
• Maximum Gain
  Trim stage (mic input): 76 dB • Trim stage (line input): 36 dB • Fader stage: 16 dB • Bus stage: 16 dB • Headphone stage: 20 dB • Mic-to-Line: 108 dB • Mic-to-Headphone: 112 dB
• Outputs

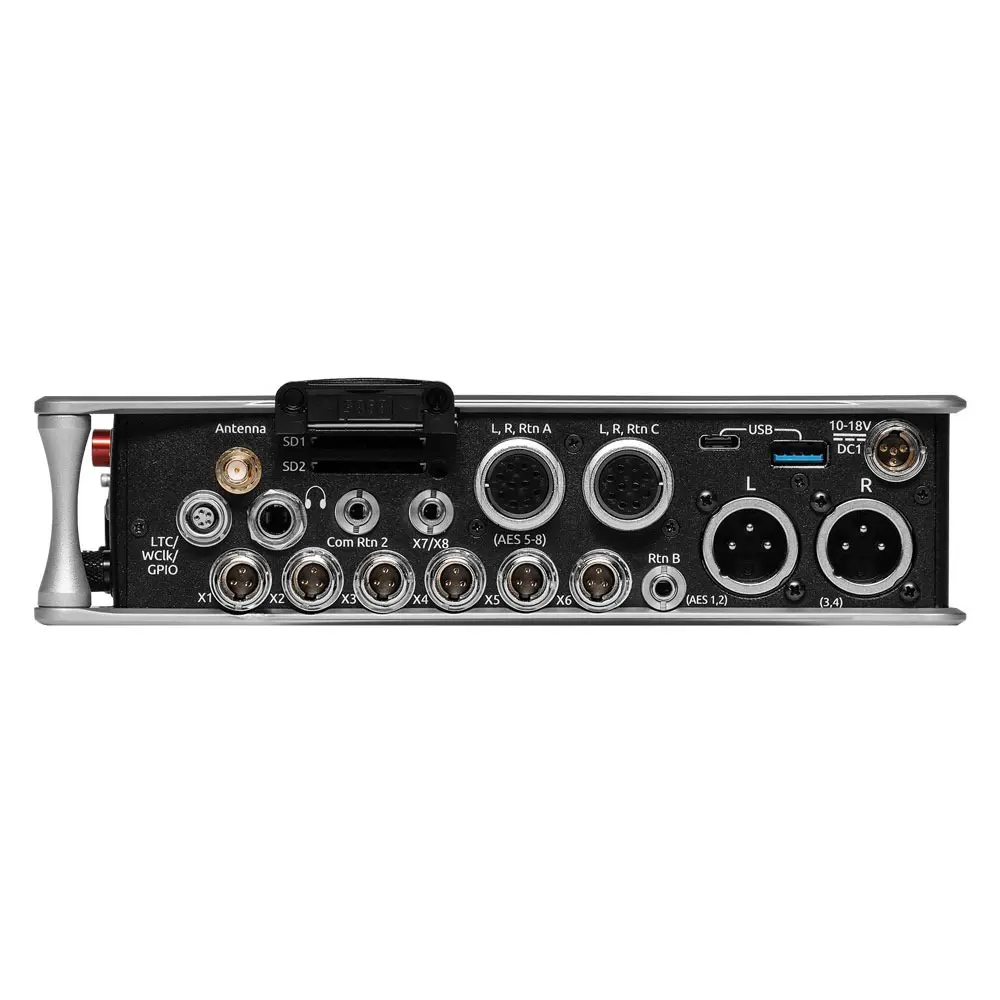

  XLR (L, R) active-balanced, 250/3.2k/120 ohms (mic/-10/line) • Hirose 10-pin (L, R) active-balanced, 250/3.2k/120 ohms (mic/-10/line) • TA3 (X1-X6) active-balanced, 250/3.2k/120 ohms (mic/-10/line) • 3.5mm (X7, X8): unbalanced, stereo, 1.8k ohms
• Headphone Outputs
  • ¼”, 3.5 mm • TA5 (along with mic input pins) for single connection to headset + mic • High output, 4 ohm output impedance, 400 mW + 400 mW at each connector, all individually driven • Compatible with headphones of any impedance
• Maximum Output Level
  • Line: +20 dBu (7.8 Vrms) • “-10”: +6 dBu (1.5 Vrms) • Mic: -20 dBu (0.078 Vrms) • X7/X8 Out: +6 dBu (1.5 Vrms) • Headphone outputs (¼”, TA-5, X9/X10): +14 dBu (4.0 Vrms)
  A/D converters • 32-bit, 120 dB, A-weighted dynamic range typical • Sampling rates 44.1 kHz, 47.952 kHz, 48 kHz, 48.048 kHz, 88.2 kHz,
  96 kHz, 192 kHz
• Digital Outputs
  AES3 transformer-balanced, in pairs; 1-2 (XLR-L), 3-4 (XLR-R), 5-8 (Hirose 10-pin A) • 110 ohm, 2 V p-p, AES and S/PDIF compatible
• Recording
• Internal 256 GB SSD • Two removable SD Cards • Simultaneous recording to internal SSD and the two SD cards • exFAT formatting • 36 tracks (32 iso channels, 4 buses) • Broadcast WAV monophonic and polyphonic file format • 64-bit WAV (RF64) monophonic and polyphonic; support for files > 4 GB
  USB • USB-C (USB 3.1 type 1) for file transfer of internal SSD, both SD Cards • USB-A host for keyboard, external controller, external USB hubs
  supported for connecting multiple devices
• Wireless
  Built-in Bluetooth v5.0 BLE (not supported with rev 1.0 release of SD-Remote)
• Timecode and Sync
  Modes Supported: Off, Rec Run, Free Run, 24h Run, External, including External Auto-Record and Continuous modes. • Frame Rates: 23.98, 24, 25, 29.97 DF, 29.97 ND, 30 DF, 30 ND • Sample/Timecode Accuracy: 0.1 ppm (0.25 frames per 24 hours) • Timecode Input: 20k ohm impedance, 0.3 V – 3.0 V p-p (–17 dBu – +3 dBu) • Timecode Output: 75 ohm impedance, 5 V p-p (+12 dBu) • Word Clock Input: 10k/75 ohm selectable impedance, 1-5 V p-p input sensitivity • Word Clock Output: 75 ohm impedance, 5 V p-p output, at SR
• Remote Control
  USB MIDI Control – 3rd party fader controllers • SD-Remote Android app • USB Keyboard • External Timecode Record Trigger
• LCD
  • 320×240, Transflective, excellent sunlight visibility • Larger touchscreen display available via USB-connected SD-Remote app
• Power
  External: dual 10-18 V inputs on locking TA4 connectors, pin-4 = (+), pin-1 = (-) • Dual rear-mount Sony-style L-mount batteries with chargers • Idle Current Draw: 875 mA @ 12 V (10.5 W) • Intelligent power-down of unused mic preamps and other internal circuits
• Environmental
  Operating: -20° C to 60° C, 0 to 90% relative humidity (non-condensing) • Storage: -40° C to 85° C
• Dimensions
  (H x W x D) • 5.1 cm x 32 cm x 20.5 cm ( 2 in x 12.6 in x 8.1 in)
• Weight
  5.8 lbs (2.63 kg) unpackaged, without batteries

Artikelcode

sd.scorpio
